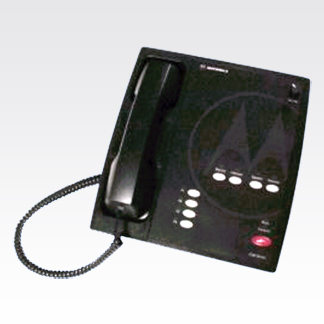

L3213 MC1000 Deskset Controller

About the size of a telephone, the cost-effective MC1000 Deskset allows remote-control access to the basic functions of a single-base station, repeater or radio in a conventional system. This compact yet powerful deskset allows 10 units to operate in parallel and offers hands-free operation.

• Single frequency station control
• Controls 1 base station
• 4 frequency station control (tone/DC models)
• Extended local, tone or DC remote control
• 4-wire local control
• 2- or 4-wire tone or DC remote control
• Supervisory takeover
• Intercom and monitor
• Handset with integrated PTT switch
• Built-in microphone and speaker
• Up to 10 parallel operator positions

PRODUCT OVERVIEW The MC Series Desktop Controllers allow remote access to the functions of a compatible station (base station, repeater, or control station). These desktop controllers support tone, DC, and E&M signalling for keying and control of stations.

For Local Control Models

• Single Frequency and Single Station Control
• Push-to-Talk Handset
• Speaker
• Speaker on/off (receive audio is heard through handset and speaker simultaneously)
• Volume Control
• Full Duplex Capability
• Internal Mic (for use without handset)
• Transmit Button with LED MC1000 BASIC MODEL (non-signaling) FEATURES
• Monitor Button with LED
• Front panel programming (easy setup – no RSS required)
• Intercom between MC1000 units and stations
• Operator cross mute
• 10 units can operate in parallel
• Parallel Operator Busy Indication
• 120 Vac – 60 Hz Power Supply
• Can be wall mounted

MC2000 ADVANCED MODEL (signaling) FEATURES

• All MC1000 Basic Model features plus:
• 110/220 Vac 50/60 Hz Power Supply
• Parallel Status (Tone model only) …. Each deskset operator knows the selected frequency and status of the station
• Programmable Voice Delay …………. User can speak immediately after pressing PTT or Transmit bar without message truncation
• Desk Mic Compatible ………………… Allows another choice of audio accessory
• MDC1200 Signaling and Paging…… Operator can selectively signal pagers, portables, or mobile radios Supports the following: (E/D; E = Encode, D = Decode)
• PTT Unit ID (E/D)……………………. Displays unit ID of caller (250 aliases)
• Voice Alert …………………………….. Allows dispatcher to alert specific user prior to critical voice transmission
• Call Alert/Short Call Alert (E/D) … Informs the user to call-in by sending a “page” to their portable or mobile
• Status/Message (D)………………… Displays received status and message codes
• Radio Enable/Disable (E) …………. Allows operator to remotely enable and disable a lost or stolen portable
• Radio Check (E) ……………………… Console operator can determine if a radio is on the air and within range without disturbing the radio user
• Emergency Alarm (D) ……………… Flashing display, audible tone, and an output for external alarms can alert the console operator of emergency situations
• Recent User Stack………………….. Allows last nine records to be stored for review at a later time
• RS232 Printer Port………………….. Allows RSS programming via computer or the logging of MDC1200 inbound/outbound message activity for permanent record keeping on a serial printer
• Alert Tone ……………………………… 3 alert tones are supported
