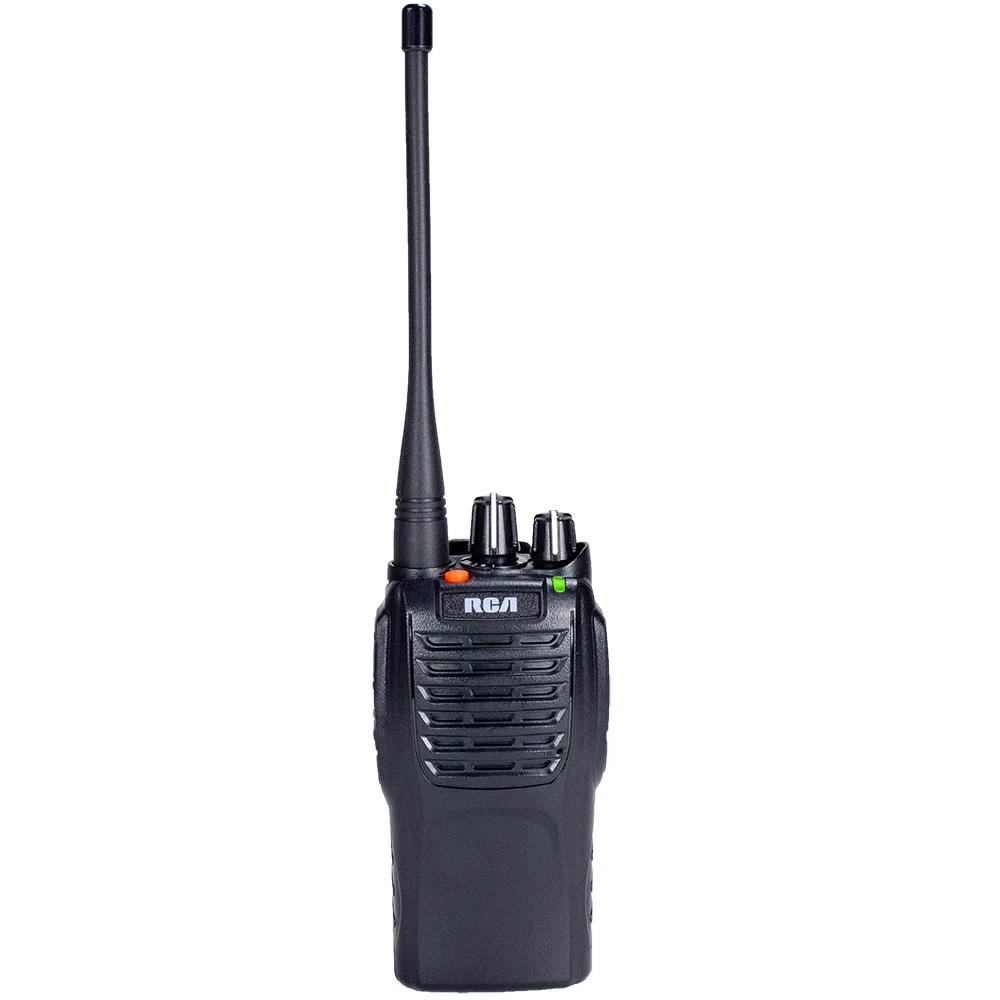

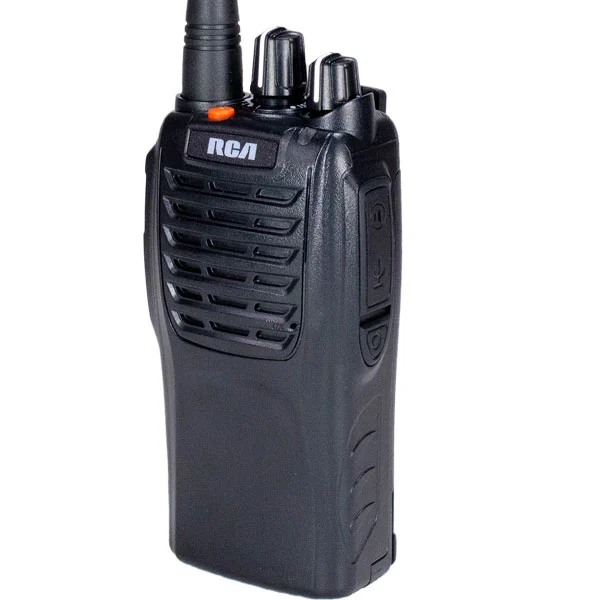

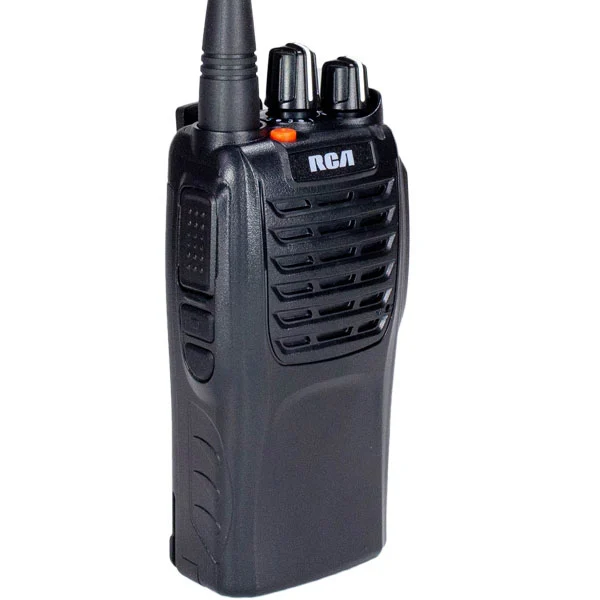

BR200V 5 Watt of Power, VHF 136-174 MHz

RCA’s BR200 is a rugged, affordable radio that will help you stay in touch without breaking your budget. This small but powerful radio has 4 watts UHF or 5 watts VHF of power providing optimum coverage range. The BR200 has a wide variety of features that will enable you to communicate effectively and efficiently with your staff.

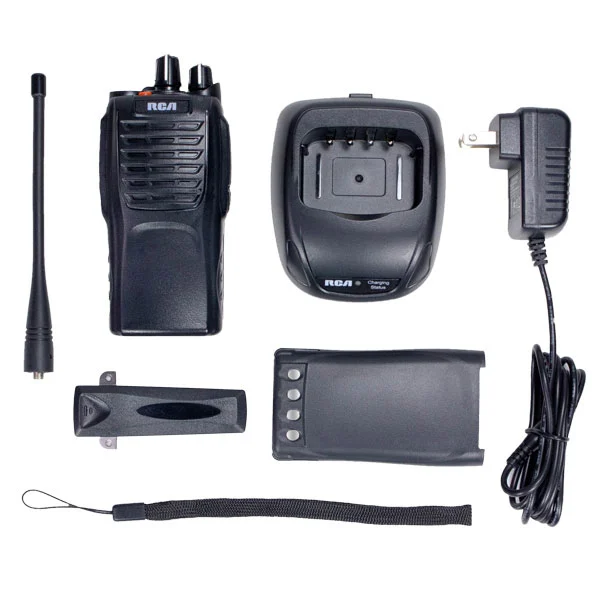

Standard Configuration:

• Radio – 4/5 Watt of Power, 16 Channels
• Antenna – Standard 6″ Antenna
• Battery – 1700mAh / 12.58Wh Lithium Ion Battery (10 Hours Usage at 5:5:90)

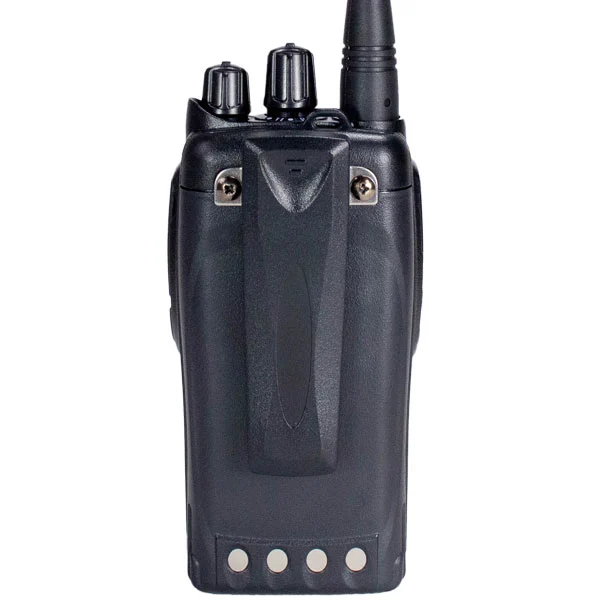

• Belt Clip – Screw-In Heavy Duty Belt Clip

Features:

On/Off and Audio – XSoundTM Enhanced Audio Clarity produces clear, crisp audio that’s 50% louder than Motorola’s CP200.

16 Channels – plenty of choices for specific departments or groups.

1700mAh Li-Ion Battery Standard – lasts approximately 14 hours.

6” Antenna Standard – provides best radio coverage.

Programmable Top Emergency Button – alarm button sounds emergency signal. Button can be programmed to transmit voice and/or radio identity or other options.

Two Programmable Side Buttons – places your favorite features at your fingertips.

Two Prong Right Angle Connector – compatible with Motorola accessories.

Signaling – 2-Tone, 5-Tone, DTMF Encode/Decode and MDC1200 Encode: PTT ID (identifies outbound calls), Individual/Group Call (receive/place calls from specific individuals or groups), Call Alert (tone indicates new inbound call), and Alarm (sounds alarm or notifies system administrator of emergency).

Voice Annunciation – announces channel number when channel is changed.

Voice Recording – records and stores messages up to 60 seconds.

Radio Stun/Kill/Revive – allows the radio administrator to disable radio if it is lost or stolen.

• Repeater Operation Capable
• Voice Annunciation
• Voice Scrambler
• Battery Strength Indicator
• Monitor
• Auto Battery Save Mode
• Low Battery Alert
• Busy Channel Lockout (BCL)
• Time-out-timer (TOT)
• CTCSS/DCS Encode/Decode
• 2-Tone, 5-Tone, MDC1200 Signalling
• DTMF Encode
• DTMF Paging
• PTT ID
• Emergency Alarm
• Lone Worker

• Frequency Bands – VHF 136-174 MHz; UHF 400-480 MHz; UHF 450-520 MHz.
• Power Output – 1 to 5 Watts (3 programmable levels).
• Channels – 16.
• Channel Spacing – 12.5 or 25 kHz.
• Frequency Stability – +/- 2.5ppm.
• Conformance – FCC, IC, FCC 2013 Narrowband Compliant.
• Environmental Protection – IP65 Certified.
• Mil Specs – MIL-STD-810 C, 810 D, 810 E, 810 F, 810 G.
• Operating Temperature – (-)22°F (-30°C) to (+)140°F (60°C).
• Dimensions – 4.5” x 2.1” x 1.3” / 113 x 54 x 33.5mm.
• Weight – 9.5 ounces (270g) with 1700 mAh battery.

2 Year Standard Manufacturer’s Warranty
